Quick Details

  • Feature: Gantry Crane
  • Condition: New
  • Application: Port
  • Rated Loading Capacity: 36 ton
  • Rated Lifting Moment: 360KN
  • Max. Lifting Load: 60 ton
  • Max. Lifting Height: 35m
  • Span: 40m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: KUANGYUAN
  • Model Number: MGU
  • Certification: ISO CE GOST
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Control: Cabin or remote
  • Industry working voltage: As your need
  • Painting colour: According to your demand
  • Work Duty: A5~A7
  • Cabin type: Movable
  • GB/T 19001-2000 idt ISO 9001:2000: Pass
  • Certifications:CE: Pass
  • GB/T 28001-2001,OHSAS 18001:1999: Pass
  • Anti-collision: Buffer
  • ELectrics: Siemens

Packaging & Delivery

Packaging Details Packaged by woven plastic woven cloth.electricals and parts packaged by plywood crate
RMG gantry crane
Delivery Time Within 45days after receiving the deposit RMG gantry crane



 Rail traveling container gantry crane with fixed spreader or adjustable spreader or rotary spreade



The crane must be supplied with the telescopic spreader.



All drives for spreader are electro-mechanical.



A length of the spreader should be regulated according to the transportation of 20 - 40 feet container.



Floating twistlocks should be used for container fixation in the spreader. Separation and grip drives should have electrical supply.



The spreader should be hanged on the swing frame of the crane.



Spreader twistlocks must provide the possibility of unevenly placed containers handling.



The spreader should have small foothold in order to handle the containers covered by snow.



The blocking device system aimed to preclude the possibility of spreader lifting after the malfunction of twistlocks should be installed on the spreader. This blocking device system should also preclude the twistlock operation when the container is lifted.



Signaling devices (lamps) confirming the twistlock operation should be installed on the spreader.



The spreader should have facilities for defective container handling.



The spreader construction should provide free access for drive maintenance.



The spreader construction should provide the possibility of manual opening of the twistlocks, if necessary.



The spreader oscillation damping system must be installed at the crane.



Rail traveling  container gantry crane With CE ISO gantry crane 36 ton

The present Terms of Reference is applied to travelling electrical gantry container type crane with gross weight lifting capacity of 36 tons (hereinafter – the crane) pertaining to group A6 according to the operating (mode) as stated in ISO 4301-1:1986.

According to the demands of environmental climatic factors influence the crane should be manufactured for outdoor use in macroclimatic area with moderate climate, designed for use within environmental temperature from -40 to +40 C, with relative humidity of the air 100% at25 °C.

Seismic intensity of the area is 6 on the MSK-64 scale.

It is prohibited to use the crane in explosive and combustible environment, to transport explosive and combustible material, as well as people.

Wind load of operative condition is 20 m/sec., of non-operative condition is 27 m/sec.



Container gantry Crane Reference Diagram :



The crane should consist of the following parts:

-            metal frame structure;

-            crane travelling mechanism;

-            carrier;

-            carrier feeder (stub feeder);

-            spread bar feeder (cable drum);

-            crane feeder (electrically driven cable drum);

-            crane terminal switches;

-            bars and limit switches;

-            anti-creepage crane gripples;

-            anti-creepage carrier gripple;

-            spread bar;

-            spreader.



 Technical parameters:



Parameter

Values

Useful lifting capacity, tn

36/40/50 ton

Mechanism speed, m/s (m/min)

lifting speed

0,17 (10)

carrier travelling speed

0,67 (40)

crane travelling

1,0 (60)

Spread bar rotating speed, rpm

1

Spread bar rotating angle, grad

±180

Deceleration/acceleration time to nominal speed values, s

lifting

2…3

carrier travelling

5…6

crane travelling

10…12

spread bar rotating

4…5

Speed adjustment range

in % from the nominal one

lifting

2...100

carrier travelling

5...100

crane travelling

5...100

spread bar rotating

5...100

Loading mode according to ISO 4301-1:1986 (load distribution factor)

Q3 (Kp=0,5)

Utilization class according to ISO 4301-1:1986 (maximum number of cycles)

U5 (5 *105)

Crane classification type in general according ISO 4301-1:1986

A6

Total running time of the mechanism according to

ISO 4301-1:1986

lifting

T6 (12500 machine hours)

carrier travelling

T6 (12500 machine hours)

crane travelling

T5 (6300 machine hours)

spread bar rotating

T5 (6300 machine hours)

Loading mode according to

ISO 4301:1-1986

lifting

L3

carrier travelling

L3

crane travelling

L3

spread bar rotating

L3





 General provisions:

The crane shall comply with the demands of these Terms of Reference. Requirements to component parts of the crane:

Name of component parts

Requirements

Frequency-response control system

Series-produced, manufacturer is one of:
Siemens, Schneider, ABB

Gear units and motors

Series-produced, manufacturer is one of:
SEW, Nord, Flander

Series-produced
SEW, Nord, Flander or counterparts or China top brand

Motor drive

Overload limiter with parameters re order

Russian interface

Control chair, joystick

Gessmann or counterparts

Electrically driven cable drums (power supply of the crane, of spreader)

Wampfler, Vahle, Cavotec or counterparts

Stub carrier feeder

Brakes

Reserve coefficient at least 1.5

Ropes

Counterparts of China-manufactured ropes

Travel wheels (of carrier and crane)

Double-flange Æ560mm

Floors of galleries, sites and stairs

Manufactured of pressed serrated galvanized grating









Variable Types of Double Girder Overhead Cranes:









Company Information
our company
HeNan Mine Crane Co,Ltd is located in Crane Hometown of China ,could supply you the best quality crane with high technique ,and the price is the best ,we have exported our over head crane to  US,Brazil,India,Paskistan,
Egypt,Bangladesh,Philippines,Australia,Malaysia,Singapore,Malta,Turkmenistan,Saudi,Arabia,Peru,Ethiopia and so on(Pls view our website for the shiipment page),and get well feedback and many new orders again from them.
HeNan Mine Crane,Ltd has been designing,manufactuying,and installing custom designed birdge cranes over the past 28 years.All cranes have been designed in accordance with national specifications.
We have hands-on experience in very demanding environments requiring special material handling. For example, we can design cranes for high duty cycles,tight dimensional  constraints,precision,long loads,and extreme weather conditions.
Wehave the best engineers,variety of types of products and powerful production capacity ,which makes us your ideal choice.
If you need to know more information about our products,please contact us. we are always at your service.

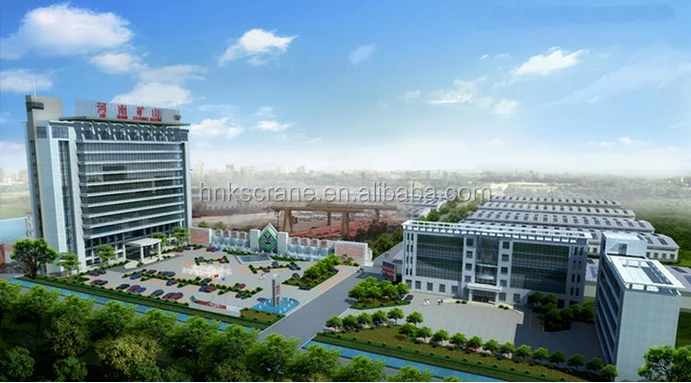

Henan Mine Crane Co., Ltd.

Address

Xinxiang, Henan province, the hometown of crane in China.

Scale

2700 employees, cover 680,000 square meters.

The company ranks in the top two in China.

Product

Electric hoists, single or double beam overhead cranes, gantry cranes, grab cranes, foundry cranes, anti-explosion cranes and related spare parts.

Market

Our crane has scored No.1 on quantity for continuous 7 years in Chinese market.

Exported to over 100 countries.

Honor

High Credit Enterprise

Top Trademark in China

Quality Reliable Company

Top-10 Brand of Crane in China

Quality Management Qualified Enterprise

Advanced Science and Technology Enterprise


Why Choose Us

>> Our philosophy

Quality makes brand , honest weaves the future.We hope Kuangyuan make contribution to economy
indusry‘s taking off. Hold hands of Kuangyuan being friends for ever.We will sincerely seek for
common progress and resplendence cooperatiing with all friends and establish brilliance.



>> Certificate



>> Professional



A.Quality inspection Dept: As for the quality, no need to worry. Our inspection team deal with it strictly. They sign together when finished the inspection.



B.Technology Dept: Kuangshan Crane have more than 100 engineer to design the drawing, we can supply CAD and 3D drawing for your workshop.

 >>Oversea Reputation



>> Good Service
