Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Kuangyuan
  • Model Number: JM
  • Usage: Construction Hoist
  • Power Source: Electric
  • Sling Type: Wire Rope
  • Maximum Lifting Weight: 750 ton
  • Maximum Lifting Height: Customized
  • Lift Speed: Customized
  • Certification: CE ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: 10 ton electric winch machine
  • Application: Boats or crane
  • Voltage: 220-440V
  • Capacity: up to 750t
  • Voltage protection device: Included
  • Control method: Push Button
  • Emergency safety system: Included
  • Limit switch: Included
  • Working duty: M3-M5
  • Color: Optional

Packaging & Delivery

Packaging Details Electric winch is packed by high quality plywood crates.

10 ton electric winch machine

Product Description



This electric winch is widely used to install and disassembly various huge and oversize concrete and steel structure as well as mechanical equipment. This electric winch is suitable for bridge construction, port, dock, quay, etc. In a word, it is suitable for large factories, mine engineering, bridge engineering, etc.

Main Advantage & Feature

1) Top quality with competitive price.

2) Widely used in the double beam bridge crane and gantry crane.

3) Easy to install and high quality.

4) Compact structure and reasonable design.

5) Overload protection , shock protective, Explosion-proof performance



Specific Details Description

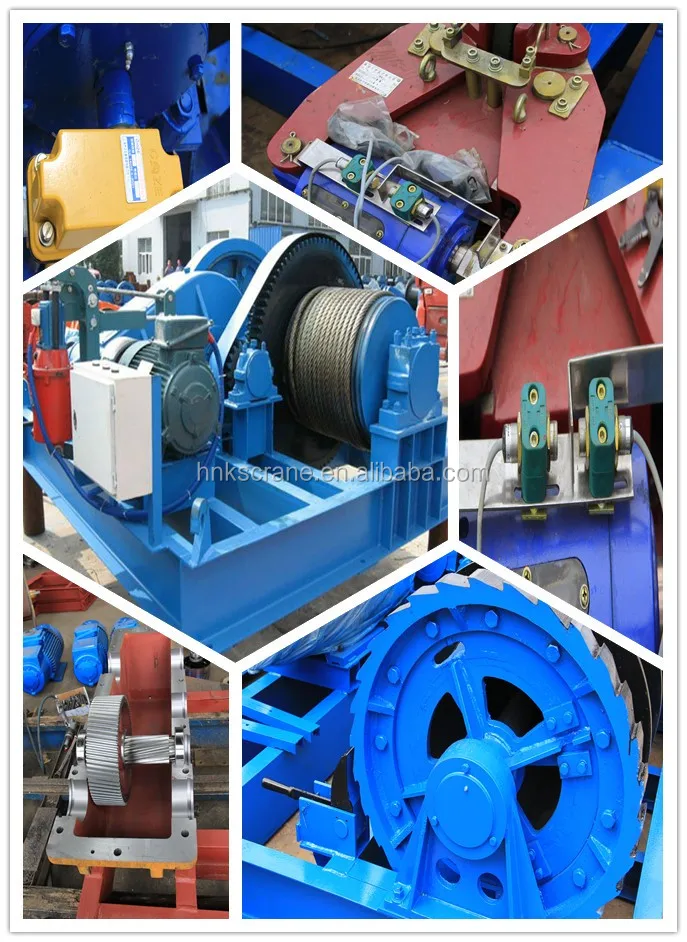

1) Electric winch by driving devices, wire rope winding system, commonly the fetch device and safety protection device, etc

2) Driving devices include: motor, coupling, brake, reducer, gear box, drum etc.

3) Wire rope winding system include: wire rope, drum, crown block and travelling block

4) Fetch device including: hook, ring, grab, electromagnetic sucker, hanging hanging beams, and other forms.

5)Safety protection device includes: the load limiter, hoisting height limiter, falling depth stop, overspeed protection switch, etc

Parameters



Type

Rated load(KN)

Rated speed(m/min)

Rope capacity

Rope diameter

Motor model

Motor power

Overall dimensions

Total weight











(m)

(mm)

(KW)

(mm)

(kg)

JM10

100

8

170

30

YZR200L-6

22

2090*1475*956

3000

JM10B

100

9.5

250

30

YZR200L-6

22

1705*1598*985

3500

JM12.5

20

8

300

34

YZR225M-6

30

2880*2200*1550

5000

JM13.5

32

5

290

28

YZP225S-8

22

2990*2363*1650

6500

JM16

32

10

500

37

YZR250M2-8

37

3750*2400*1850

8800

JM20

50

10

600

43

YZR280S-8

45

3950*2560*1950

9900

JM25

50

9

700

48

YZR280M-8

55

4350*2800*2030

13500

JM32

50

9

700

56

YZR315S-8

75

4500*2850*2030

14800

JM50

50

9

800

65

YZR315M-8

90

4930*3050*2250

19500

JM65

50

10.5

3600

64

LA8315-8AB

160

5900*4680*3200

46000





Company Information

- Ever since 1984, Henan Mine Crane has been and continues to be a professonal overhead crane manufacturer.

    Since 2003 year, we have new brand KUANGYUAN, then Kuangshan Group is produced.

  - Up to now, Henan Mine Crane has been an Overhead Crane Industry Leader, expecially in overhead cranes for steel industry.

 - Our focus is to provide our customers a cost effective solution that will meet their material handling needs.

 - We provide whole series of overhead bridge cranes with capacity from 0.5 ton to 550 ton.

 -  Our products not only for overhead crane, we still have transfer cart, gantry crane, jib crane, hoist and other crane parts
 - We supply crane parts to many crane manufactures in China and outside.
 - We have BV, CE and ISO certificate.



Our service

24 hours online serving, no worry for jet lag

Professional mechanical engineers and electrical engineers provide suitable solution only for you!

Engineers available to service machinery overseas

Provide free safety operating training and maintenance training

Recieved customer's message about the quality problems, related after sale service managers should help customer solve problems immediately!

Serious, thoughtful and completely solve the problems. Make sure the sustained serving!

FAQ

Welcome your visiting and any question~



RFQ-------Just inform us your

1. lifting capacity?

2. Lifting height?

3. Industrial voltage?

4.Lifting speed & diameter of wire rope?

5. other special working requiremtent?



We are pleasure to offer you our best design and reasonable price for your reference.
